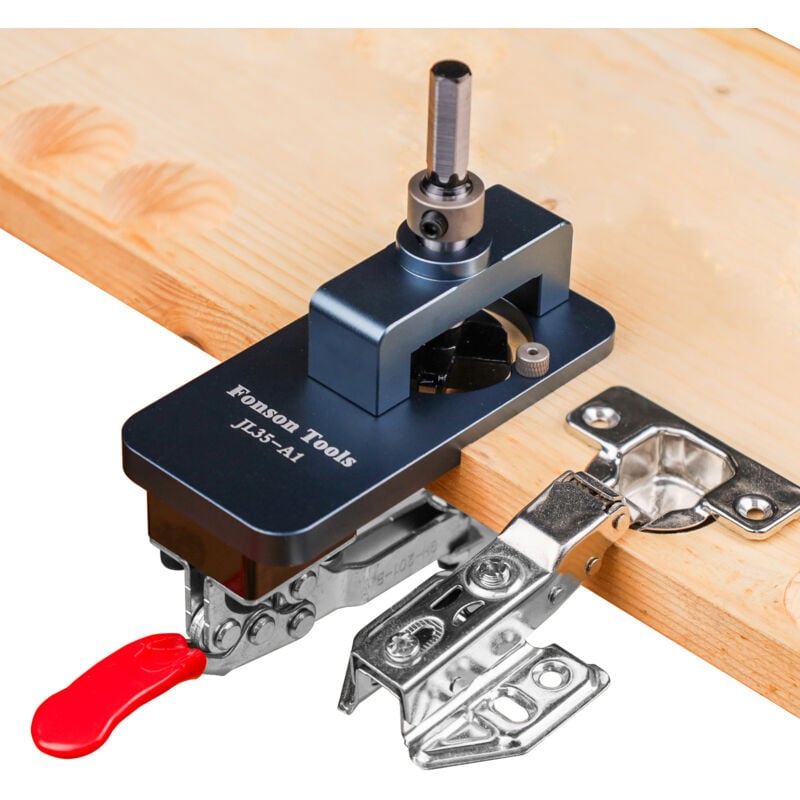

General description The 35mm Hinge Jig is an essential tool for DIY woodworking projects, designed to simplify the installation of concealed hinges in cabinets and doors. This jig allows for precise drilling and alignment, ensuring a professional finish with minimal effort. Technical specifications Drilling depth: 12-13mm Adjustable fixed board size: 15-25mm Includes a 2mm drill bit Installation Install a 35mm hole opener. Adjust the drilling depth to 12-13mm and lock the limit ring. Set the size of the black pressure block of the quick clamp (adjustable from 15-25mm). Position the puncher at the marked drilling location and lock the quick clamp. Tighten the drill handle and drill to a depth of 12-13mm at a constant speed. Drill a 2mm screw hole on both sides and install the 35mm hinge. Usage This hinge jig is ideal for accurately drilling holes for concealed hinges in cabinet doors, making it perfect for both professional carpenters and DIY enthusiasts. Other information Package
